SOYAL WEB PLC

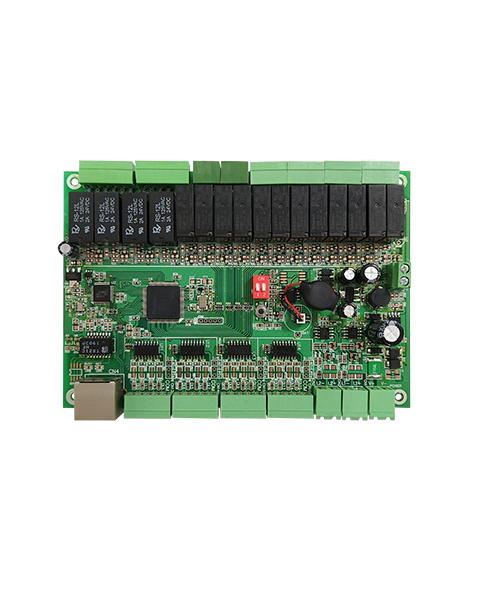

AR-401-PLC-1616R
Programmable Logic Controller (WEB PLC)
Programmable Logic Controller berbasis web dengan Modbus TCP/RTU, mendukung pemrograman logika online langsung dari browser. Dilengkapi 16 input + 16 relay output, integrasi penuh dengan ekosistem SOYAL, dan skalabilitas hingga 256 I/O points untuk otomasi gedung cerdas.
Programmable Logic Controller Berbasis Web
WEB PLC Controller
16 DI + 16 DO / Modbus TCP
16+16
Input + Relay Output
Modbus TCP
Komunikasi Ethernet
256 I/O
Ekspansi Maksimum
Web-Based
Pemrograman Online
Keunggulan Utama
AR-401-PLC-1616R adalah Programmable Logic Controller berbasis web yang mendukung pemrograman logika secara online langsung dari browser. Dengan 16 isolated input dan 16 relay output (4 Form C + 12 Form A), serta kemampuan ekspansi hingga 256 I/O points melalui 15 modul I/O terdistribusi. Mendukung cross-IP/cross-PLC cloud-based logic programming, integrasi penuh dengan ekosistem SOYAL untuk access control dan central monitoring, serta fitur smart scheduling untuk otomasi gedung cerdas yang memenuhi standar ESG.
Fitur Utama

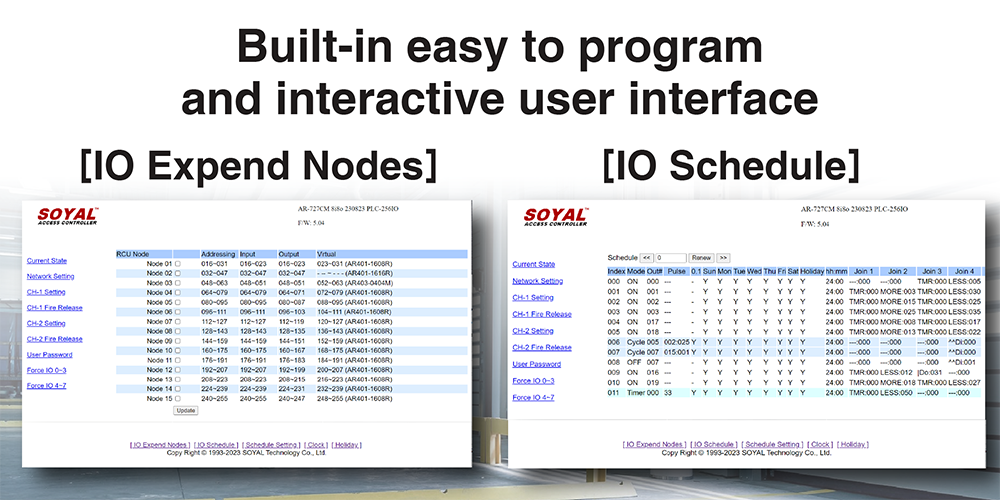

- Web-Based Programming: Pemrograman logika langsung dari browser via web interface bawaan.

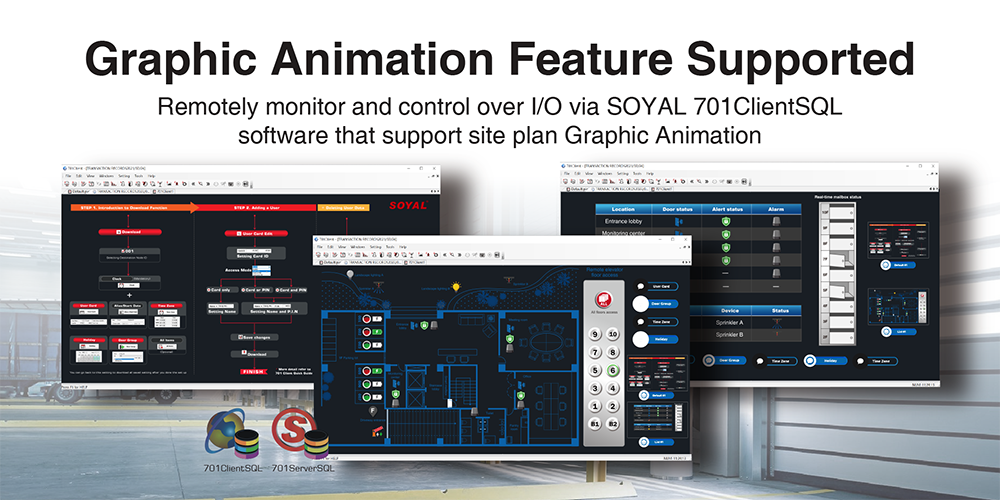

- Integrasi Ekosistem SOYAL: Kontrol remote via Modbus TCP, terintegrasi dengan access control dan SCADA.

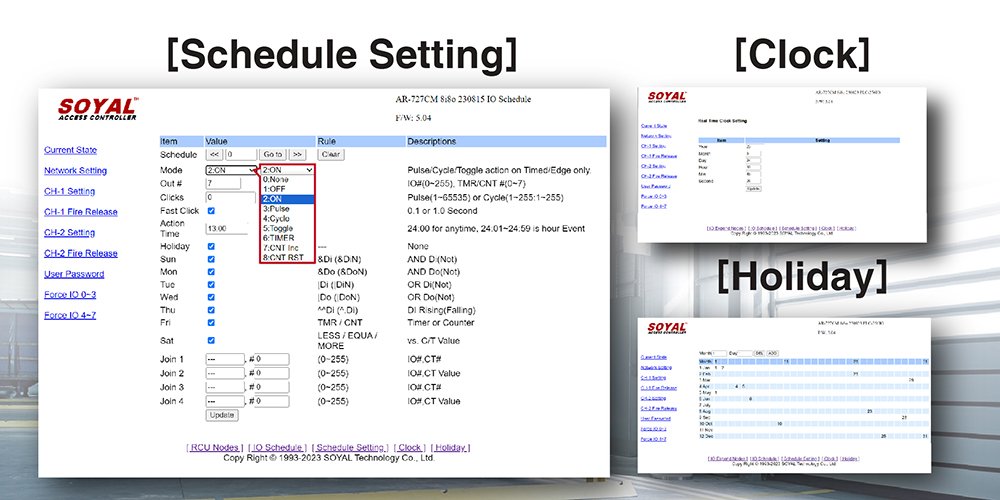

- Smart Scheduling: Fitur penjadwalan canggih untuk otomasi gedung cerdas.
- Skalabilitas Tinggi: Ekspansi hingga 15 modul I/O (256 I/O points), atau 120 contact points via AR-816RB relay.
- ESG Compliance: Integrasi switch button lokal dan fire detection.

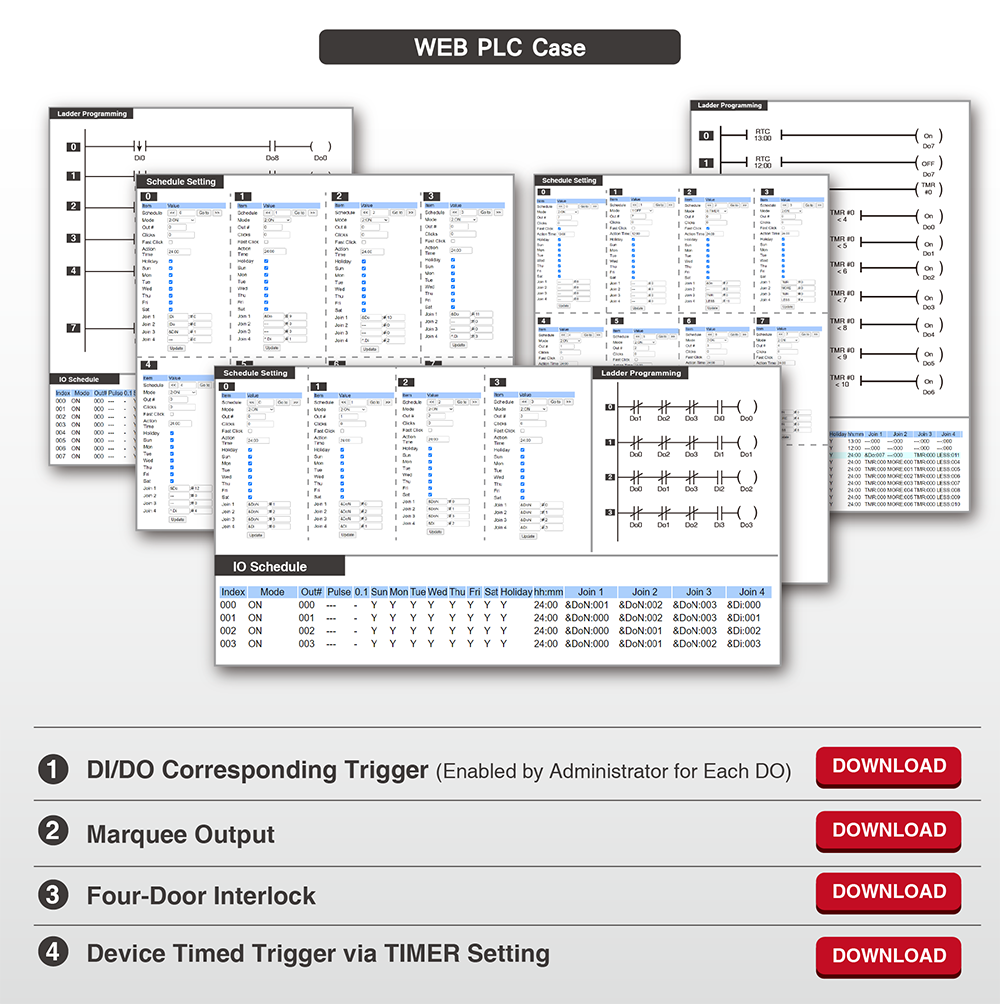

- 64 Logic Expressions: Web-based editor untuk logika kompleks dengan calendar, timer, counter.
- Surge suppression 400W + optical isolation 5kV + PTC protector.
Fitur Hardware & Logika

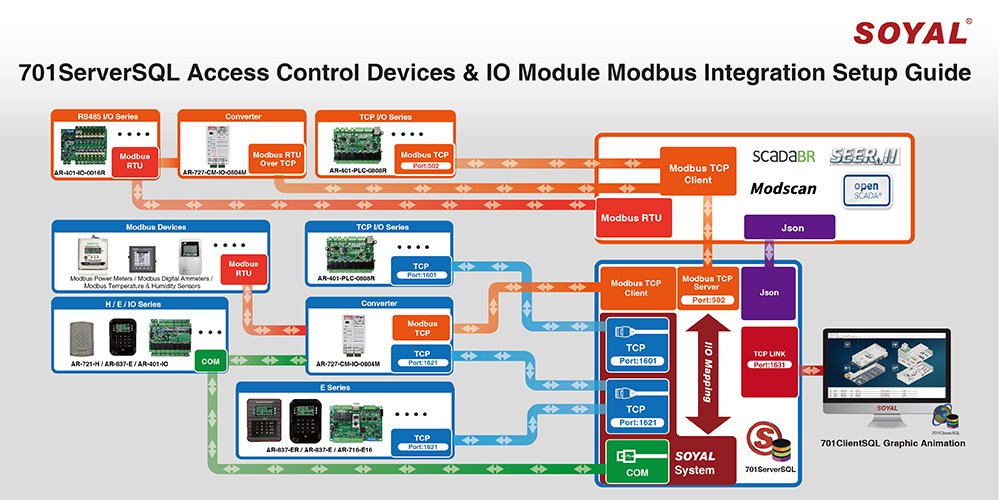

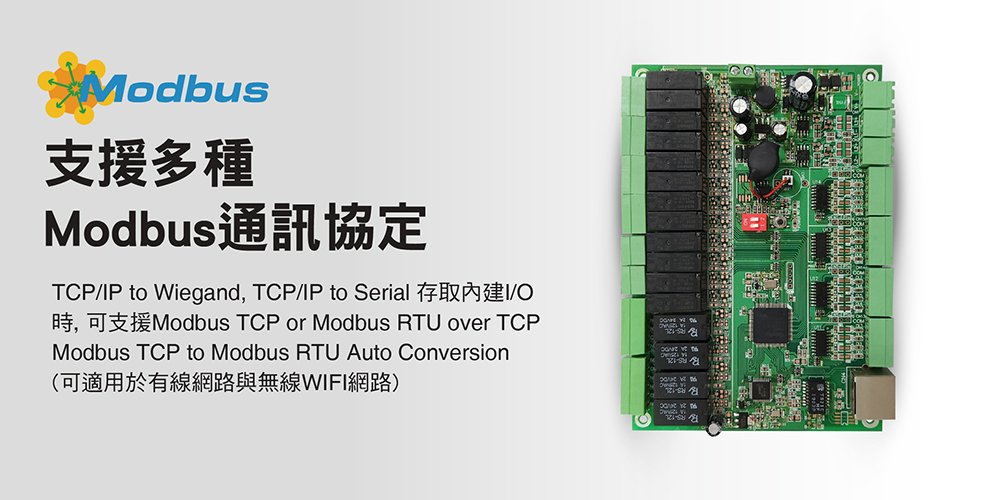

- Modbus-TCP to RTU Gateway built-in, koneksi ke RTU devices/meters.

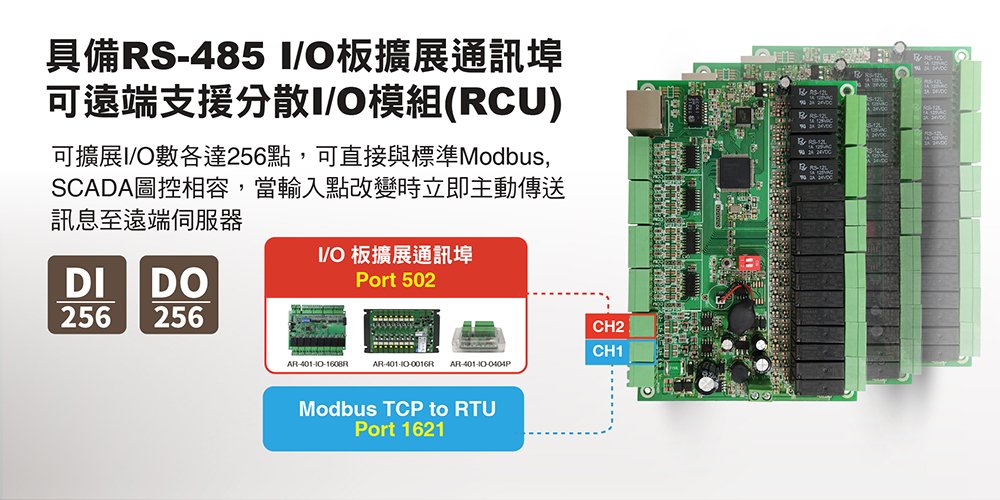

- RS-485 I/O expansion port x2, support TCP Server/Client/UDP.
- 16 relay output: 4 Form C + 12 Form A (250VAC/30VDC/4A).
- 16 isolated input dengan pilihan positive/negative triggering.

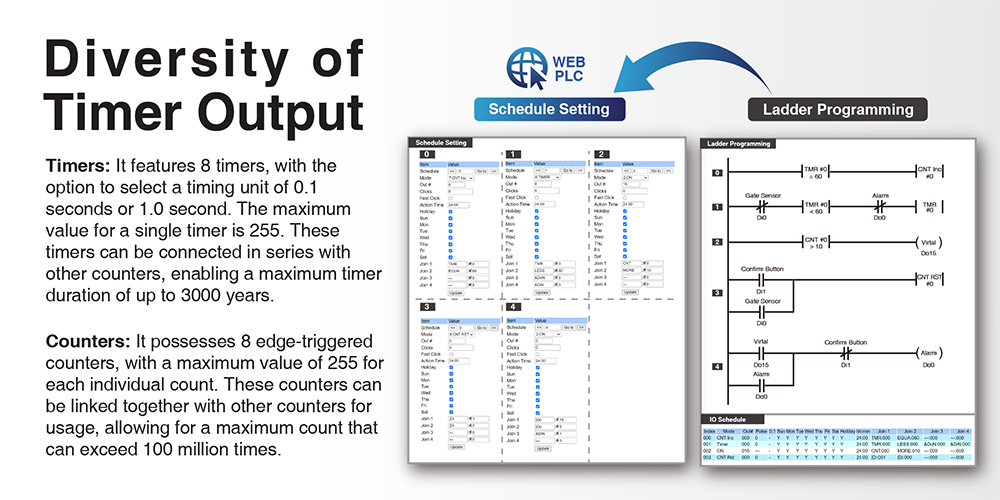

- 8 Timer (unit 0.1s atau 1.0s, max 255, seri = hingga 3000 tahun).
- 32 Edge-triggered Counter (max 255 per counter, seri = 100 juta+).
- Logic conditions: hourly/daily/weekly/calendar/timer/counter/AND/OR/Edge.
- Output types: ON/OFF, One Shot, Continue Pulse, Counter, Timer.
- Optional PoE (12W/1A), DIN Rail mounting (AR-701B).
Aplikasi & Visual Produk
Spesifikasi Teknis Lengkap
Interface
| Parameter | AR-401-PLC-1616R |
|---|---|
| Ethernet | TCP/Server, TCP/Client, UDP Mode |
| Serial Port | RS485 x2 (TCP/Server, TCP/Client, UDP) |
| Baud Rate | 4800 bps – 115200 bps |
| Inputs | 16 Isolated Input (positive/negative triggering) |
| Outputs | 16 Relay Output 4 Form C + 12 Form A (250VAC/30VDC/4A) |
| Ethernet Speed | 10/100 Mbps Base T |
Protocol / Protection
| Parameter | Specification |
|---|---|
| Protocol | ModBus-TCP, ARP, IP, TCP Client, UDP, ICMP, HTTP, DHCP, NetBIOS |
| Serial Buffer | 1K each channel |
| LED Indicator | Power: Tx/Rx, D.O./D.I |
| Watchdog / Linkage | YES / YES |
| Surge Suppression | 400W peak, Clamping <1 picosecond |
| Fuses / Isolation | PTC Protector (Power & RS485) / 5kV optical isolation |
Power / PLC Logic
| Parameter | Specification |
|---|---|
| PoE | Optional, 12W/1A |
| Power Supply | 12–24 VDC |
| Power Consumption | <2W |
| Logic Expressions | 64 (web-based editor) |
| Timers / Counters | 8 Timers (0.1s/1.0s) / 32 Edge-triggered Counters |
| Operating Temperature | -20℃ ~ +70℃ |
Dimension / Weight
| Variant | Dimension (mm) | Net Weight |
|---|---|---|
| PCB | 100(H) × 147(W) × 20(D) | approx. 150g |
| With Plastic Mounting Base | 102(H) × 175(W) × 30(D) | approx. 240g |
| With Metal Casing | 180(H) × 231(W) × 62(D) | approx. 1760g |
Certifications / Software
| Parameter | Specification |
|---|---|
| LVD | EN 62368-1 |
| EMC | EN 55032 |
| EMS | IEC 61000-4-2 ESD: Contact 6kV; Air: 8kV IEC 61000-4-3 RS: 80MHz–2.7GHz: 10V/m |
| Network/Device Setting | 701Server, 701Client, HTTP Web page (any browser) |
| OS Supported | Windows 7/8/10, Win Server 2008/2012/2016 |
| DIN Rail Mounting | Compatible with AR-701B |
| Logic Programming Feature | Detail |
|---|---|
| Logic Expressions | 64 (web-based editing interface) |
| Logic Conditions | Every hour / day / week / Calendar / Timer / Counter / AND / OR / Edge |
| Output Types | ON/OFF / One Shot / Continue Pulse / Counter / Timer |
| Timers | 8 timers (0.1s or 1.0s unit, max 255, series = up to 3000 years) |
| Counters | 32 edge-triggered (max 255 each, series = 100 million+) |

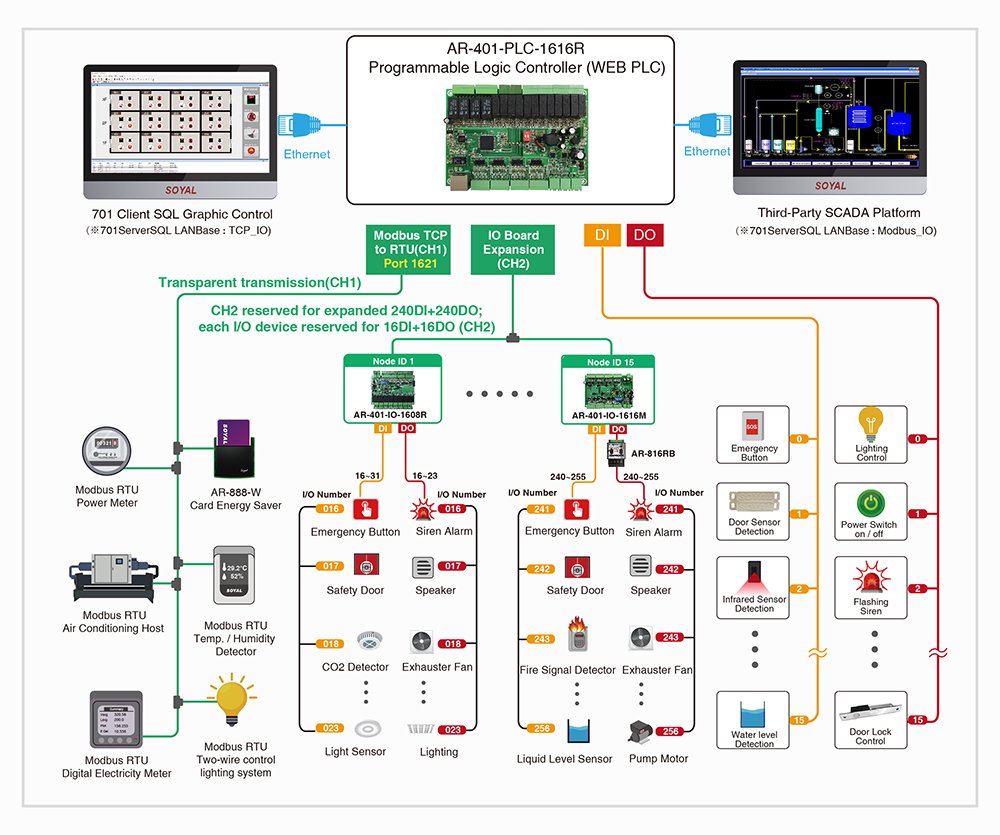

| I/O Expansion | Up to 15 distributed I/O modules (256 I/O points max) |
| Emergency Feature | UDP broadcast & RS485 auto release all doors during fire event |
Aplikasi Otomasi Gedung
- Intelligent Power Distribution: Alokasi daya cerdas berdasarkan kebutuhan, optimasi penggunaan energi.
- Air Quality Management: Monitoring dan penyesuaian kualitas udara indoor secara real-time.
- Load-Balanced Water Supply: Regulasi pompa cerdas untuk stabilitas dan efisiensi suplai air.

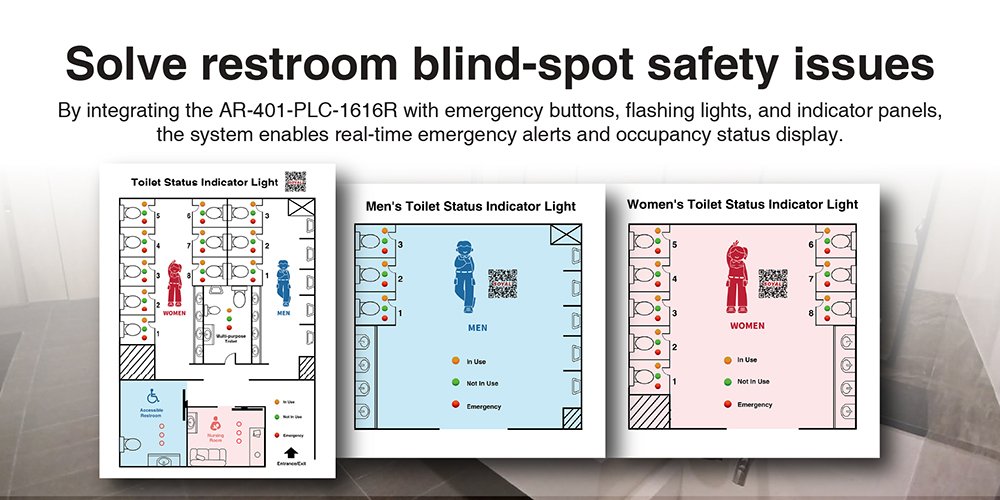

- SOS Toilet Darurat: Sistem tombol darurat untuk toilet dan washroom publik.

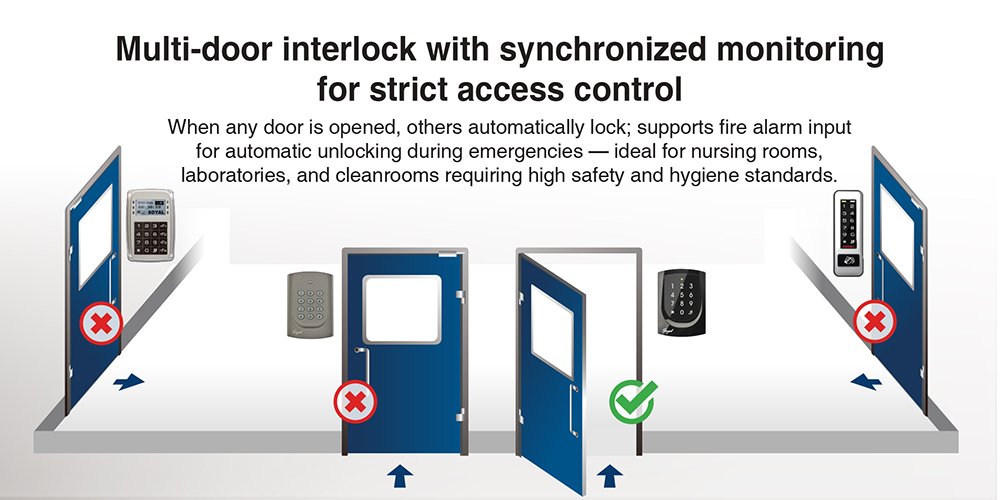

- Multi-Door Interlock: Sistem kunci pintu saling (interlock) untuk keamanan area terbatas.
Contoh Aplikasi
- Otomasi gedung perkantoran dan smart building (ESG compliance).
- Kontrol HVAC, pencahayaan, dan distribusi daya cerdas.
- Integrasi fire alarm dengan auto-release door emergency.
- Sistem interlock multi-pintu untuk cleanroom, laboratorium, dan data center.
- SOS emergency button untuk toilet publik dan washroom.
- Monitoring kualitas udara dan manajemen pompa air.
- Kontrol PLC untuk mesin dan perangkat industri via web browser.
