Soyal Access Controller AR-757-H
FEATURES
◎ Optional 125KHz or 13.56MHz frequency,HB: 125KHz induction frequency / HD: 13.56MHz induction frequency

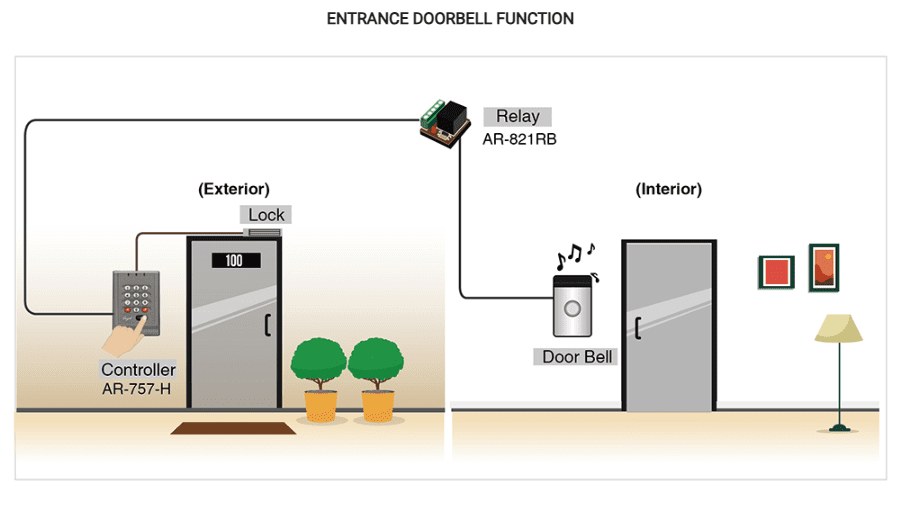

◎High security controller, supporting doorbell
Overview
- 125kHz or 13.56MHz Access Controller Built-in Hardware Watchdog & Real Time Clock Function

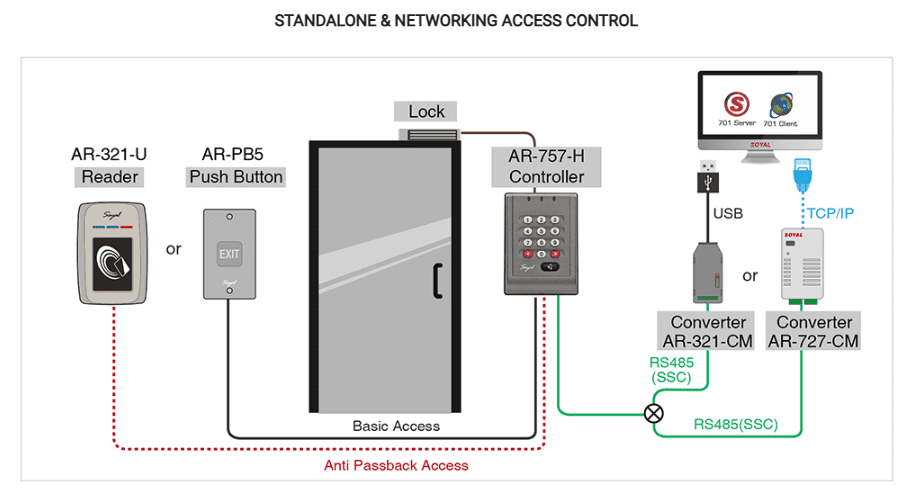

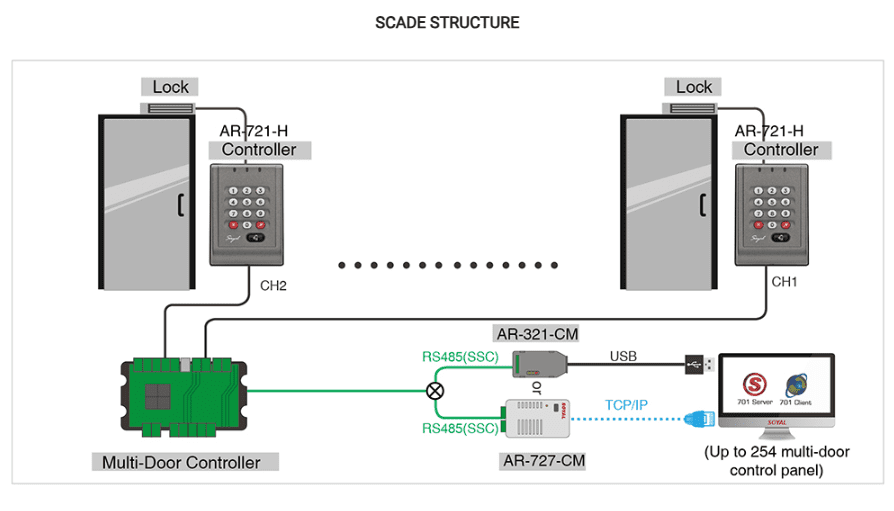

- Standalone / Networking / Support Cascade Structure
- Support RS485 communication encryption, SSC (Soyal Security
Communcation) - In-Field Firmware Upgrade

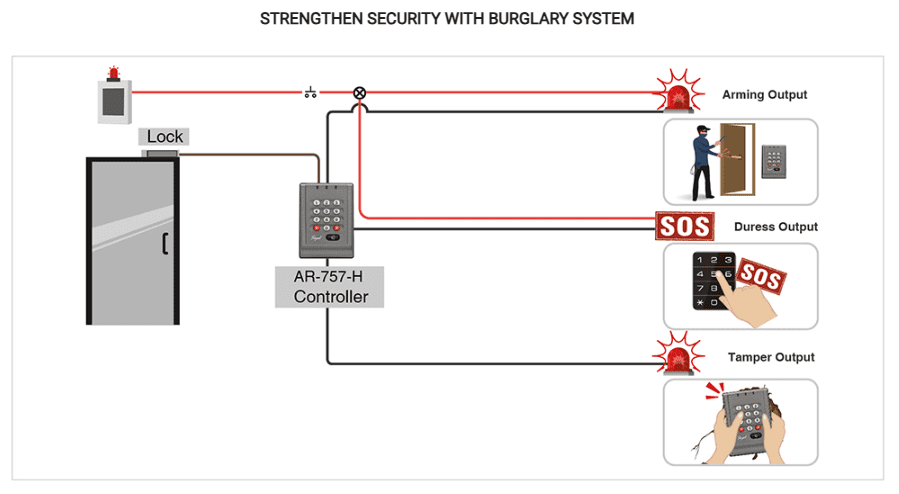

- Arming / Force Alarm / Unclose Alarm
- Duress Code & Output
- Multi Operation Mode
- Multi Output: Door lock output (0.1-600 sec. and toggle mode) & alarm
output (1-600 sec.) - Support DESFire tags (Crypto comply with EAL4+)
- Silent Operation Mode: Push Button and All Mute
- Support One and Half Door, and One and Half Door Anti-Passback
- Auto Open Time Zone: Built in 2 time zones, with Control Panel up to
63 time zones. - Assign user for Door Group (up to 254) and Time Zone (up to 11, with
control panel up to 63) - Holiday Edit Up to 120 days a year
- Auto Relock for Anti-Trailing and Sneaking
- Access control, lift control, time attendance, payroll, and SCADA: graphic monitoring & remote control function
- Can be an encrypted RS485 reader if utilized with other brand’s controller
Specification
| Frequency / UID Bits / RF Reading Range | ||
|---|---|---|
| B (125Khz) | D (13.56Mhz) | |
| Frequency | ISO18000-2: EM4001 | ISO 14443 /ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation) |
| and EM4095 compatible | ||
| UID Bits | 24~32 (Adjustable) | |
| RF Reading Range | 10-18 cm | 2-8 cm |
| *MIFARE and MIFARE Classic, MIFARE DESFire, MIFARE Plus, MIFARE Ultralight are registered trademarks of NXP B.V. | ||
| RFID Crypto / Communication interface | ||
| B (125Khz) | D (13.56Mhz) | |
| RFID Crypto | — | CC Certification: |
| 3DES Crypto comply with EAL4+ | ||
| Host | RS-485 (9600 bps) | RS-485 (9600 bps) |
| SSC (Soyal Security Communication) | ||
| Serial | UART PORT (Only Output) | |
| Wiegand Input | Wiegand 24~34 | |
| Wiegand Output | No | |
| *SSC (SOYAL SECURITY COMMUNICATION) To enchance security of communication | ||
| DI/DO (Doors Control:1.5) | ||
| Main Controller | Wiegand Output Port | |
| DI | Egress X1 | Share with Main Controller |
| Door Status X1 | ||
| Door Lock Output | Door Lock Relay X1 | Share with Main Controller |
| Alarm Output | Open Collector X1 ( Share with Lift Control ) | |
| Wiegand Port | — | Wiegand Data 0 Intput X1 |
| Wiegand Data 1 Intput X1 | ||
| Red LED Output X1 | ||
| Green LED Output X1 | ||
| Beeper Output X1 | ||
| Open Collect Output | Arming Output X1 | |
| Security Trigger Signal X1 | ||
| Duress Output X1 | ||
| Tamper | Limit switch (1 Form C/ 1000mA / 30VDC) | |
| User Capacity / Floors Number / Event Log | ||
| User Capacity / Floors Number | 1,024 Users / 32 Floors | |
| Event Log | 1100 | |
| Hardware specifications | ||
| Power Voltage | 12-24VDC | |
| Flash memory | Capacity 512Kb | |
| (The user data and event logs can be stored for more than 10 years after power off) | ||
| RTC | RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment) | |
| CPU | 8051series (8 bits) | |
| Power Consumption | <3W | |

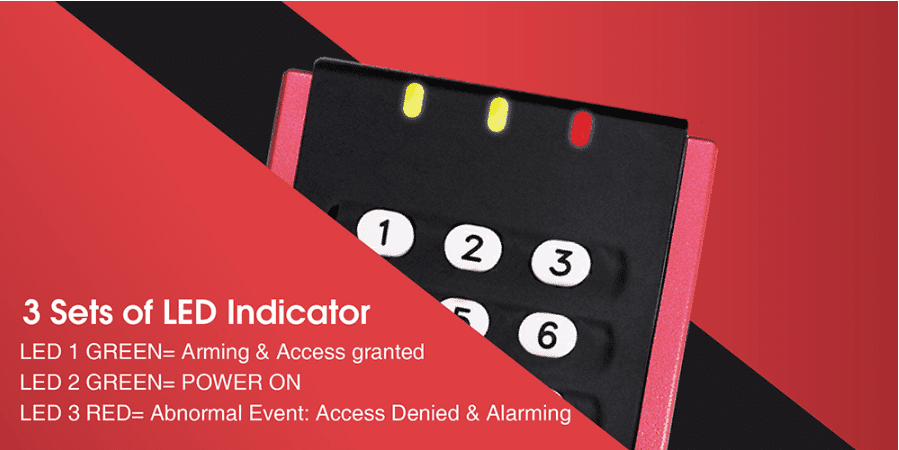

| Indicator | LED | 3 Bi-Color LED (Green/Red) |
| Buzzer | 1 | |
| TAMPER | Limit switch (1 Form C/ 1000mA / 30VDC) | |
| Housing Material | ABS (Fire-proof level: 94V0) | |

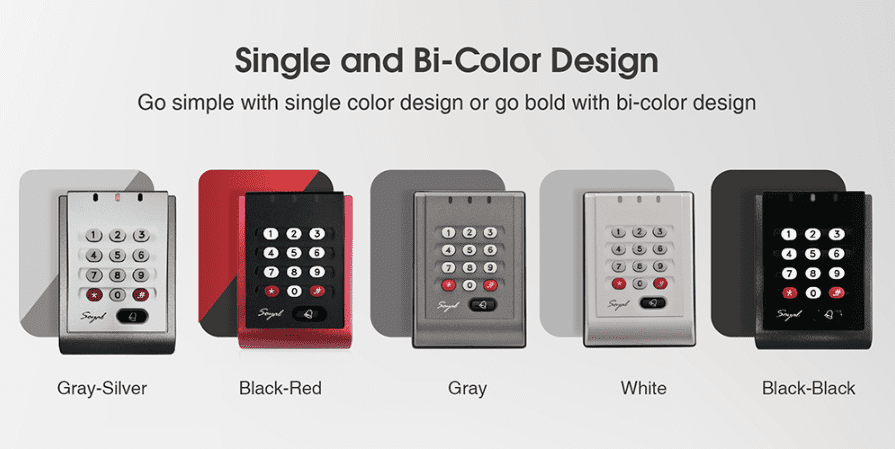

| Color | Silver, Gray, Black-Black, Black-Red, Gray-Silver | |
| Keypad | Rubber | |
| Dimension (mm) | 126(L)X91(W)X32(H) | |
| Net Weight(g) | approx.155 | |
| Ingress Protection | IP54 | |
| Environment | Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ to +75℃ | |
| Operating Humidity | 0%~90% (non-condensing) | |
| Storage Humidity | 0%~95% (non-condensing) | |
