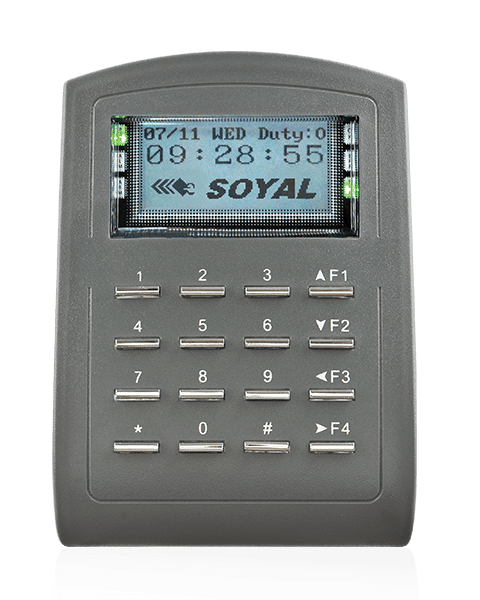

AR-727-E
Classic Graphic Display Multi-Function Controller
Controller akses multifungsi dengan tampilan graphic display klasik, mendukung Dynamic Graphics & Emergency Event Pop-up, komunikasi TCP/IP dan RS485, output serial UART, Modbus, dan format SOYAL untuk integrasi lintas sistem, kendali lift terjadwal, serta cloud access control dengan unggah data aktif via TCP.
Controller Multifungsi dengan Graphic Display

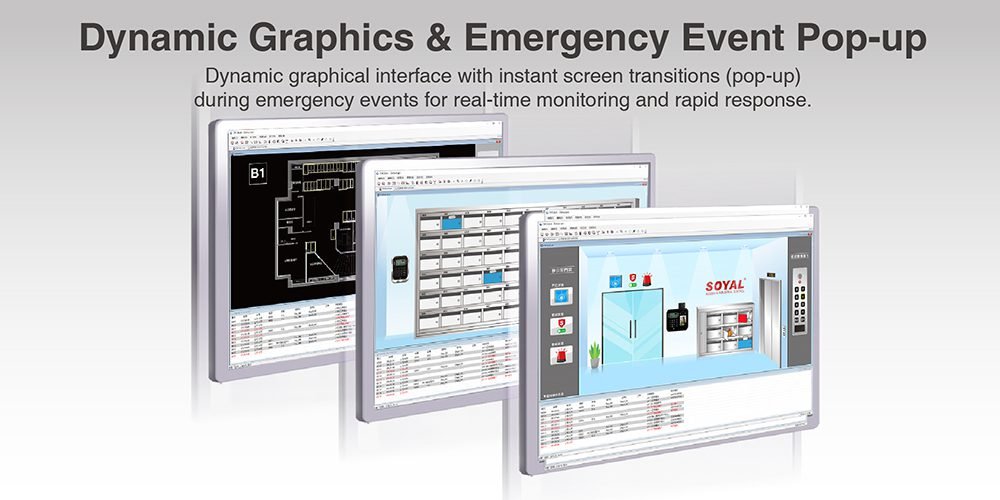

Dynamic Graphics & Emergency Event Pop-up
Mendukung tampilan grafis animasi dan pop-up kejadian darurat secara real-time pada layar grafis klasik.
65,000
Pengguna Maksimum
2 Doors
Kontrol 2 Pintu
IP54
Proteksi Ingress
RS485 / TCP/IP
Komunikasi Fleksibel
Keunggulan Utama
AR-727-E dirancang untuk kebutuhan access control modern dengan tampilan grafis klasik yang mendukung animasi dan pop-up kejadian darurat, komunikasi ganda TCP/IP dan RS485, fungsi kendali 2 pintu, kapasitas hingga 65.000 pengguna, serta dukungan integrasi ke berbagai aplikasi seperti mailbox, roller shutter door, attendance, ETC long range, dan sistem pihak ketiga via UART/Modbus/SOYAL serial output.
Ringkasan Fitur
- Volume buzzer dapat diatur hingga 10 tingkat.
- Mendukung Dynamic Graphics & Emergency Event Pop-up pada layar grafis.

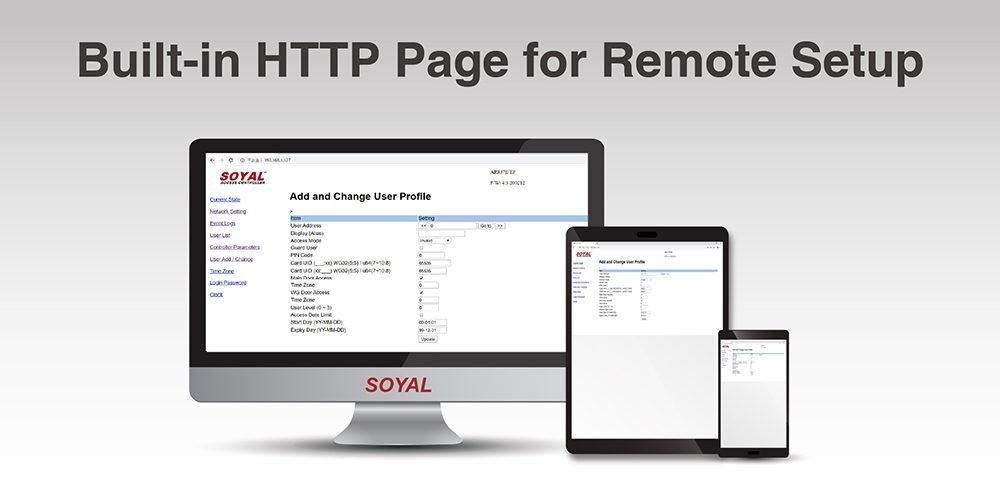

- Tersedia built-in HTTP page untuk pengaturan jarak jauh.
- Mendukung kendali lift terjadwal dengan firmware khusus.
- Mendukung cloud access control dengan unggah data aktif melalui TCP.
- Mendukung UART, Modbus, dan format SOYAL untuk output serial lintas sistem.
- Perlindungan IP54.
Fungsi Lanjutan
- Komunikasi ganda RS485 dan Ethernet 10/100M Base-T.
- Dilengkapi watchdog, RTC, anti-vandal switch, alarm setting, holiday edit, dan auto open door time zone.
- Mendukung kapasitas 16.000 / 32.000 / 65.000 pengguna.
- Mendukung kontrol 64 / 32 / 16 lantai sesuai pengaturan kapasitas.
- Saat Ethernet terputus, controller tetap dapat membaca UID dan menyimpan event log.
- Mode akses: kartu saja, kartu atau password, serta kartu dan password.
- Mendukung fungsi anti-passback, duress code, relay output, dan SSC encryption.
Aplikasi & Visual Produk
Spesifikasi Teknis Lengkap
Frequency / UID Bits / RF Reading Range
| Model | B (125kHz) | D (13.56MHz) | S (Dual Band) |
| Frequency | ISO18000-2: EM4001 and EM4095 compatible | ISO14443 / ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica / iCASH Card | 125kHz: ISO18000-2: EM4001 and EM4095 compatible 13.56MHz: ISO14443 / ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica / iCASH Card |
| UID Bits | 24~64 Bit (Adjustable) | ||
| RF Reading Range | 5-15 cm | 2-5 cm | 2-15 cm |
*MIFARE and MIFARE Classic, MIFARE DESFire, MIFARE Plus, MIFARE Ultralight are registered trademarks of NXP B.V.
RFID Crypto / Communication
| RFID Crypto | — (B model); CC Certification: AES Crypto comply with EAL5+ (D & S model) |
| Host | RS-485 (9600 bps), TCP/IP (Optional By Order), POE (Optional By Order), SSC (Soyal Security Communication) |

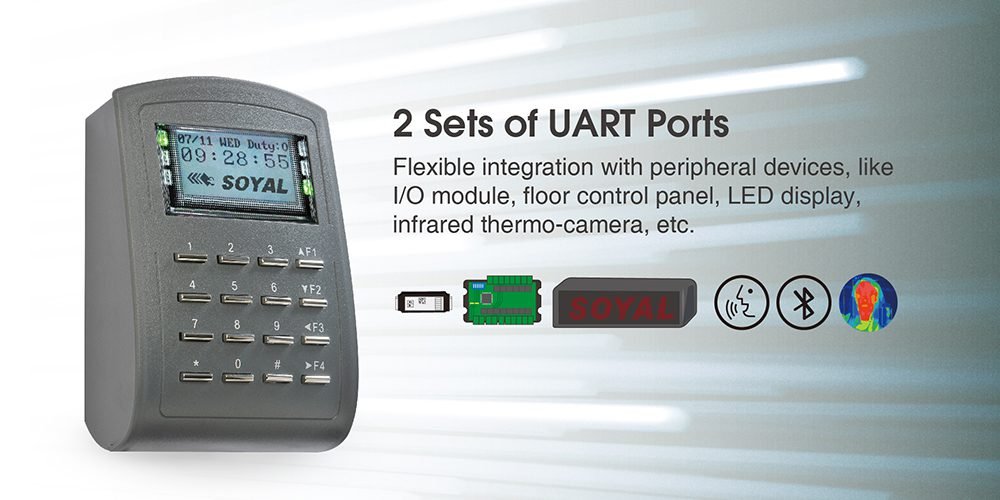

| Serial | TTL UART (4800~115200 bps) X2 (half-duplex) |
| Wiegand Input | Wiegand 26~64 |
| Wiegand Output | Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal |
*SSC (SOYAL SECURITY COMMUNICATION): To enhance security of communication.
DI / DO (Doors Control: 2)
| Main Controller | Wiegand Output Port | |
|---|---|---|
| DI | Egress X1, Door Status X1 | Egress X1, Door Status X1 |
| Door Lock Output | Door Lock Relay X1 | Open Collector X1 |
| Alarm Output | Relay X1 | |
| Wiegand Port | — | Wiegand Data 0 Input X1, Wiegand Data 1 Input X1, Red LED Output X1, Green LED Output X1, Beeper Output X1 |
| Open Collect Output | Arming Output X1, Security Trigger Signal X1, Duress Output X1 | |
| Tamper | Limit switch (1 Form C / 1000mA / 30VDC) | |
User Capacity / Floors Number / Event Log
| User Capacity / Floors Number | 16,000 Users / 64 Floors (Default value); 32,000 Users / 32 Floors; 65,000 Users / 16 Floors |
| Event Log | 32,000 |
Hardware Specifications
| Power Voltage | 12-24VDC |
| Flash Memory Capacity | 32Mb (Data pengguna dan log event dapat tersimpan lebih dari 10 tahun setelah daya mati) |
| RTC | RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute |
| CPU | ARM Cortex M3 (32 bits) |
| Power Consumption | <5W |
| Housing Material | ABS (Fire-proof level: 94V0) |
| Color | Gray |
| Keypad | Electroplated Rubber Keyboard |
| Dimension (mm) | 126(H) x 91(W) x 46(D) |
| Net Weight (g) | approx. 240 |
| Ingress Protection | IP54 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ to +75℃ |
| Operating Humidity | 0%~90% (non-condensing) |
| Storage Humidity | 0%~95% (non-condensing) |
| Indicator LED | 6 LED (Green / Red) |
| Buzzer | 1 |
| TAMPER | Limit switch (1 Form C / 1000mA / 30VDC) |
| LCD Panel | 128*64 (4 line messages, 16 Characters each line) |
Mode Akses & Kontrol
- Card only
- Card or password
- Card and password

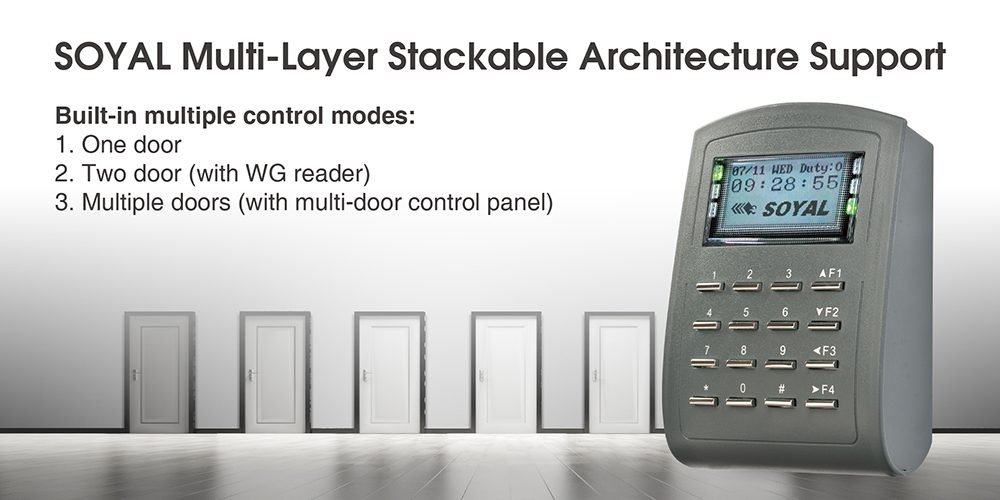

- Two doors control: dua set push button dan door status.
- Relay output untuk lock dan WG output untuk reader.
- Standalone / Networking dapat diganti saat sistem berjalan.

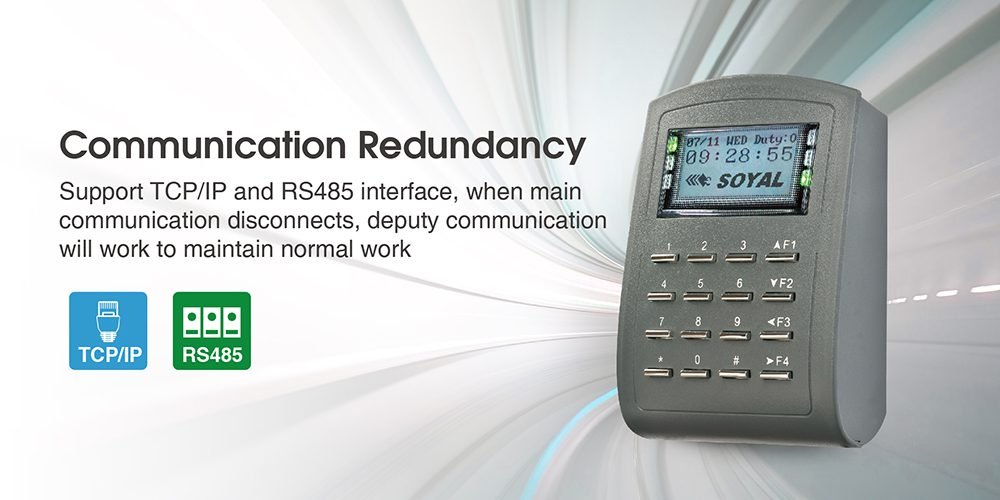

- Mendukung communication redundancy: TCP/IP dan RS485.
- Mendukung output serial UART, Modbus, dan SOYAL format untuk integrasi lintas sistem.
Contoh Aplikasi
- Standalone & networking access control.
- Integrasi mailbox pintar dengan tampilan grafis real-time.
- Integrasi roller shutter door dengan firmware khusus.
- Reader mode untuk integrasi dengan controller pihak ketiga.
- Attendance dengan 8 set status kerja.
- ETC Long Range Access Control System.

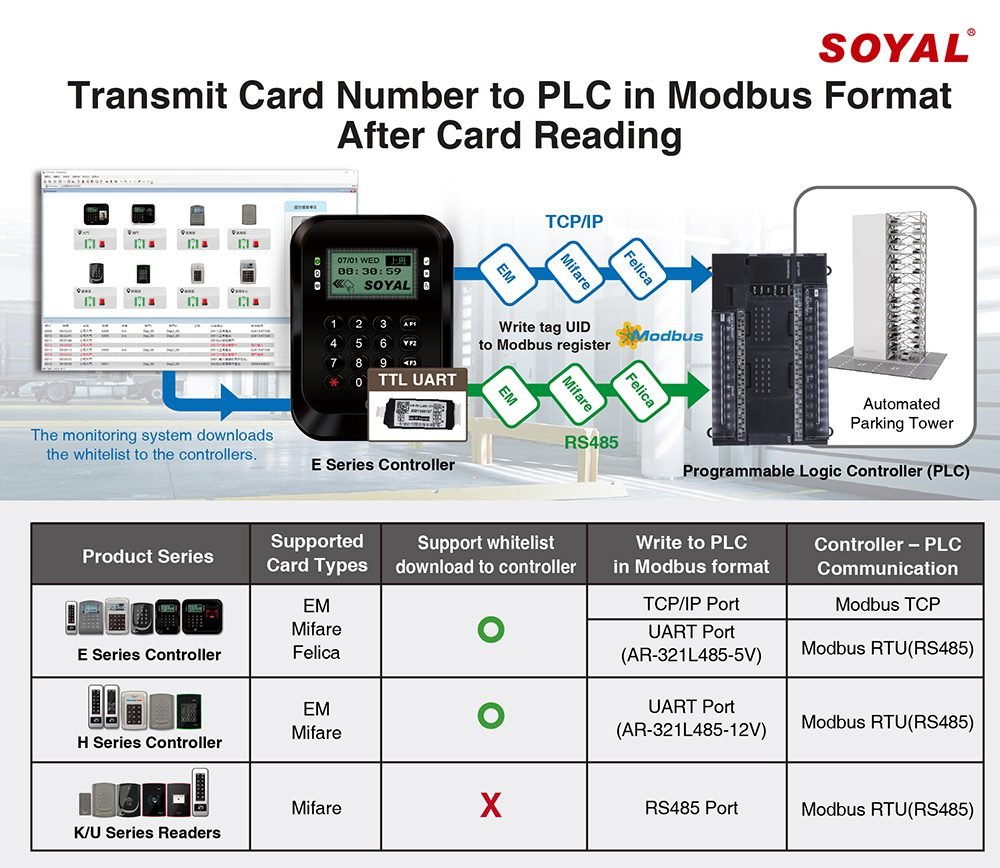

- Integrasi PLC, machine control, dan aplikasi ESD/cleanroom via UART/Modbus.
