Authorized Distributor Soyal Access Control Indonesia
SOYAL ACCESS CONTROL

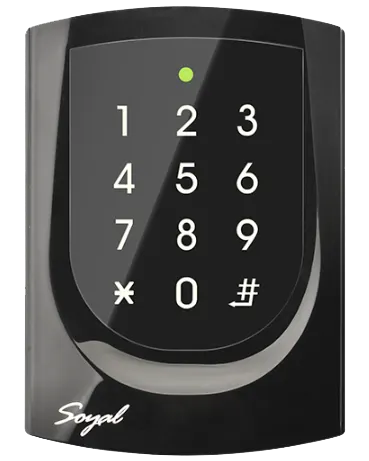

AR-725-E
Illuminated Touch Keypad Multi-Function Controller
Controller akses multifungsi dengan keypad sentuh bergaya iluminasi dan arsitektur bertumpuk multi-layer SOYAL, mendukung Communication Redundancy (TCP/IP dan RS485), volume buzzer 10 tingkat yang dapat disesuaikan, serta unggah data aktif ke cloud melalui TCP — tersedia dalam housing PC maupun metal untuk kebutuhan indoor & outdoor.
Kontrol Akses Berbasis IP dengan LCD
Reader Akses Kontrol dengan Touch Panel
Reader Cantik dengan touch panel yang tahan air
65,000
Pengguna Maksimum
2 Doors
Kontrol 2 Pintu
IP66
Perlindungan Ingress IP55
RS485 / TCP/IP
Komunikasi Fleksibel
Keunggulan Utama
AR-725-E dirancang untuk kebutuhan access control modern dengan keypad sentuh bergaya iluminasi, dukungan arsitektur bertumpuk SOYAL multi-layer, dan kemampuan cloud access control dengan Active Data Upload via TCP. Tersedia housing PC maupun metal, cocok untuk berbagai skenario instalasi — mulai dari gedung perkantoran, lift, hingga solusi cleanroom dan integrasi PLC industri.
Ringkasan Fitur
- Volume buzzer dapat diatur hingga 10 tingkat.

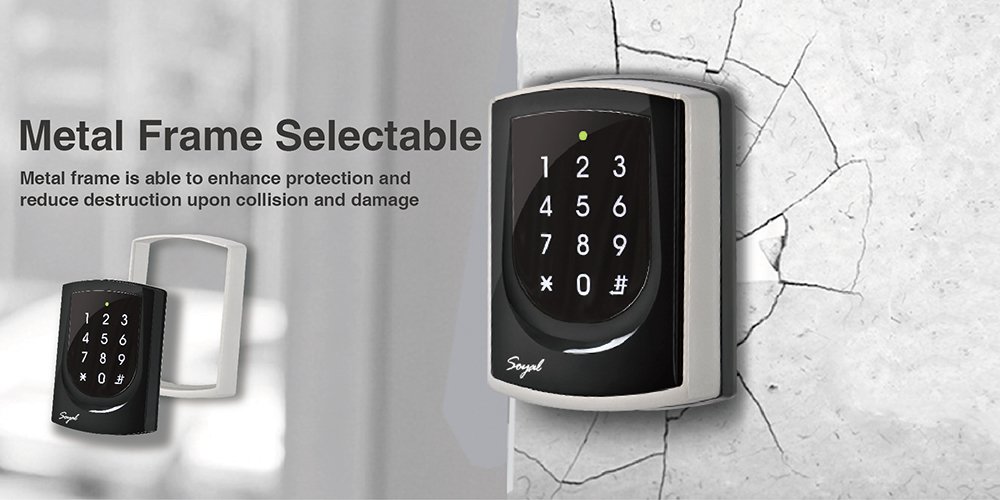

- Frame metal opsional tersedia untuk perlindungan tambahan dari benturan.

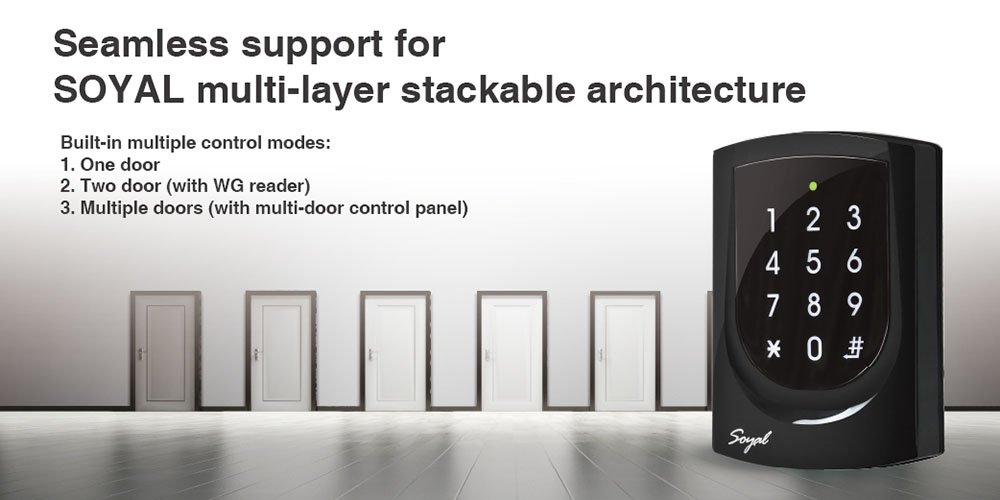

- Dukungan penuh arsitektur bertumpuk multi-layer SOYAL.
- Elevator Scheduled Control (memerlukan firmware khusus).

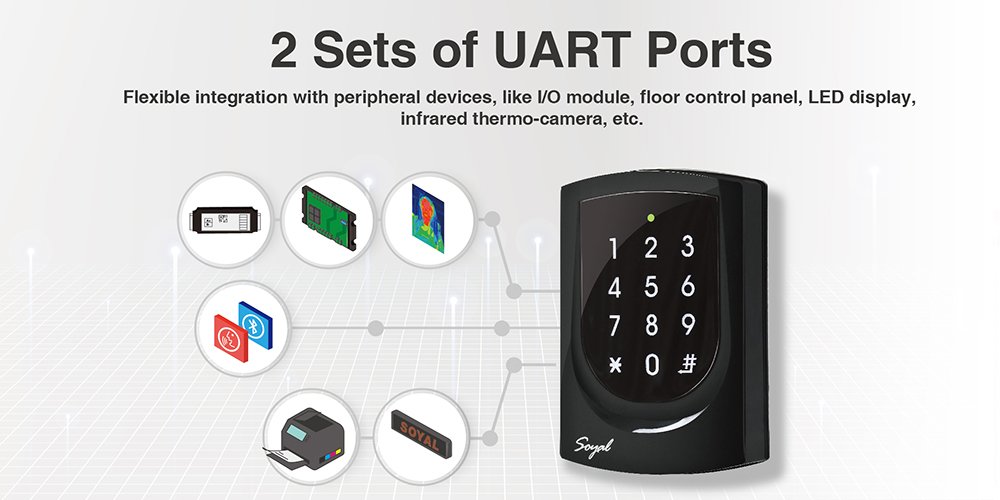

- 2 Set Port UART.
- Communication Redundancy: TCP/IP dan RS485.
- Cloud Access Control dengan Active Data Upload via TCP.
Fungsi Lanjutan
- Dual communication interface: RS485 dan Ethernet (10/100M Base T).
- Built-in watchdog, RTC, anti-vandal switch, alarm setting, holiday edit, auto open door time zone, door group, anti-passback, dan duress code.
- Kapasitas pengguna: 16.000 / 32.000 / 65.000 pengguna.
- Kontrol lantai: 64 / 32 / 16 lantai.
- Jika Ethernet terputus, controller tetap dapat mengidentifikasi UID dan merekam event log.
- Mode akses: card only, card or password, card and password.
- Mendukung enkripsi komunikasi RS485, SSC (Soyal Security Communication).
Aplikasi & Visual Produk
Spesifikasi Teknis Lengkap
Frequency / UID Bits / RF Reading Range
| B (125kHz) | D (13.56MHz) | S (Dual Band) | |
|---|---|---|---|
| Frequency | ISO18000-2: EM4001 and EM4095 compatible | ISO14443 / ISO7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC / ISO15693 / Felica / iCASH Card | 125kHz: ISO18000-2 EM4001 & EM4095; 13.56MHz: ISO14443/ISO7816-4 Mifare Ultralight/Classic/Plus/DESFire EV1,EV2/NFC/ISO15693/Felica/iCASH |
| UID Bits | 24~64 Bit (Adjustable) | ||
| RF Reading Range (PC Housing) | 10–15 cm | 2–8 cm | 2–15 cm |
| RF Reading Range (Metal Housing) | 5–9 cm | 2–5 cm | 2–9 cm |
RFID Crypto / Communication Interface
| B (125kHz) | D (13.56MHz) | S (Dual Band) | |
|---|---|---|---|
| RFID Crypto | — | CC Certification: AES Crypto comply with EAL5+ | |
| Host | RS-485 (9600 bps) / TCP/IP (Optional) / POE (Optional) / SSC (Soyal Security Communication) | ||
| Serial | TTL UART (4800~115200 bps) X2 (half-duplex) | ||
| Wiegand Input | Wiegand 26~64 | ||
| Wiegand Output | Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal | ||
DI / DO (Doors Control: 2)
| Main Controller | Wiegand Output Port | |
|---|---|---|
| DI | Egress X1 / Door Status X1 | Egress X1 / Door Status X1 |
| Door Lock Output | Door Lock Relay X1 | Open Collector X1 |
| Alarm Output | Open Collector X1 | — |
| Wiegand Port | — | Wiegand Data 0 Input X1 / Data 1 Input X1 / Red LED X1 / Green LED X1 / Beeper X1 |
| Open Collector Output | Arming X1 / Security Trigger Signal X1 / Duress X1 | — |
| Tamper | Limit switch (1 Form C / 1000mA / 30VDC) | |
User Capacity / Floors Number / Event Log
| User Capacity / Floors Number | 16,000 Users / 64 Floors (Default); 32,000 Users / 32 Floors; 65,000 Users / 16 Floors |
| Event Log | 32,000 |
Hardware Specifications
| Power Voltage | 12–24VDC |
| Flash Memory | 32Mb (data & event log tersimpan >10 tahun setelah mati listrik) |
| RTC | Bertahan 14 hari setelah mati listrik; error <1 menit/minggu |
| CPU | ARM Cortex M3 (32 bit) |
| Power Consumption | <5W |
| Housing Material | PC / PC+Metal (Fire-proof: 94V0) |
| Color | Black |

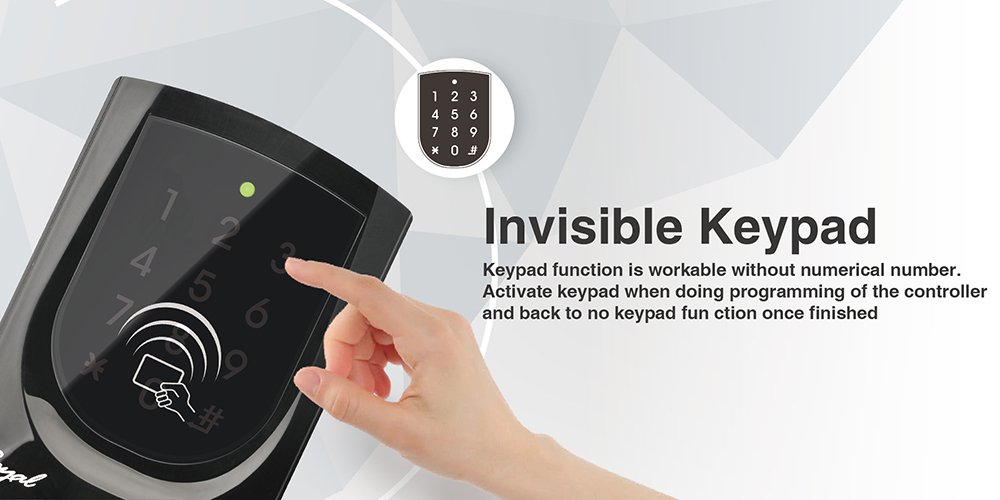

| Keypad | Illuminated Touch-Panel / Invisible Keypad Function |
| Dimension (PC Housing) | 110(H) × 79(W) × 26(D) mm |
| Dimension (Metal Housing) | 125(H) × 89(W) × 30(D) mm |
| Net Weight (PC Housing) | approx. 120 g |
| Net Weight (Metal Housing) | approx. 470 g |
| Ingress Protection | IP55 |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +75°C |
| Operating Humidity | 0%~90% (non-condensing) |
| Storage Humidity | 0%~95% (non-condensing) |
| Indicator LED | 1 Bi-Color LED (Green / Red) |
| Buzzer | 1 (10-level adjustable volume) |
| TAMPER | Limit switch (1 Form C / 1000mA / 30VDC) |
| Keypad | Illuminated Touch-Panel / Invisible Keypad Function |
Mode Akses & Kontrol
- Card only
- Card or password
- Card and password
- Two doors control: dua set push button dan door status.
- Relay output untuk lock dan WG output untuk reader.
- Standalone / Networking dapat diganti saat sistem berjalan.
- Mendukung communication redundancy: TCP/IP dan RS485.
Contoh Aplikasi
- Standalone & networking access control.
- Elevator / Lift Control dengan Elevator Scheduled Control (firmware khusus).
- Integrasi mailbox pintar dengan tampilan grafik real-time.
- Attendance dengan 8 set status kerja.

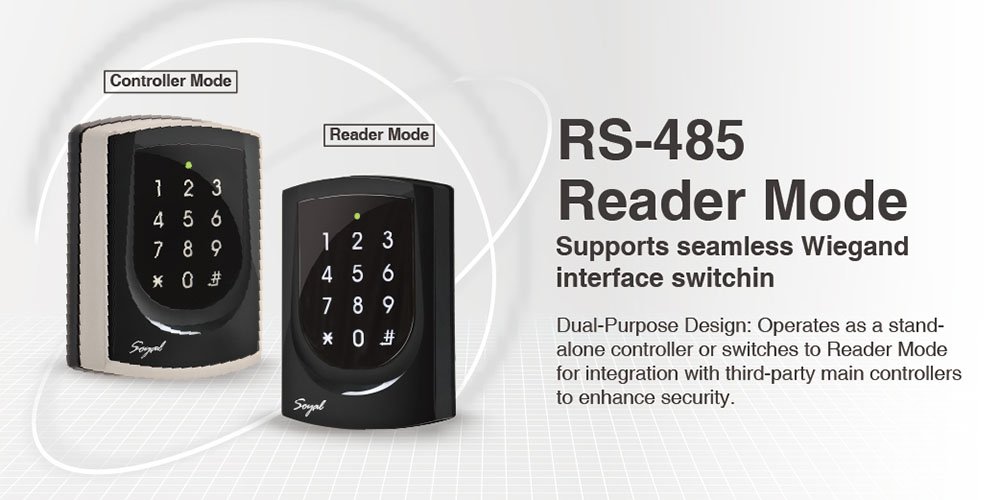

- Reader mode untuk integrasi dengan controller pihak ketiga.
- Integrasi PLC, machine control, dan aplikasi ESD/cleanroom.
- Cloud Access Control dengan Active Data Upload via TCP.
